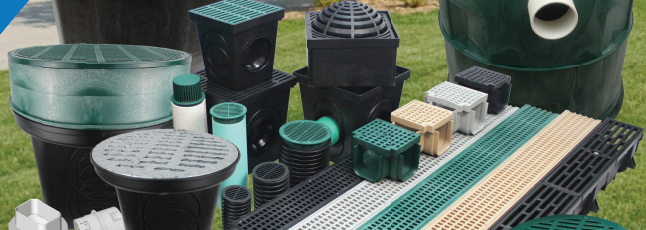

Drainage & Stormwater Management Systems
Drainage solutions for municipal, commercial, and industrial applications
Linear Drainage Systems, Sump Pits, Catch Basins, & Oil Interceptors.

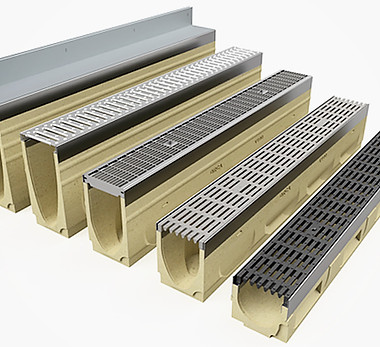

Linear Trench Drain Systems
Linear trench drain systems provide efficient surface water collection and conveyance for municipal, commercial, industrial, agricultural, and residential applications. Designed to remove water from traffic and pedestrian areas, these systems help reduce standing water, improve site drainage, and support safe, functional surfaces.
​
Common applications include parking lots, driveways, sidewalks, roadways, warehouses, agricultural and farm facilities, food and beverage processing areas, car washes, loading docks, and hardscapes. Trench drain systems are available in multiple materials, including polymer concrete, polypropylene, galvanized steel, and stainless steel, offering durability, corrosion resistance, and suitability for demanding environments. Select systems and grates are appropriate for washdown and hygienic applications, including food processing facilities.
Linear trench drains support controlled water flow, reduce surface ponding, and improve operational safety in high-use and washdown environments.
​
Systems:
Channel Trench Drain Systems
Slot Drain Systems
Polyethelyne Trench Drain Systems
​​
Catch Basins, Drain Wells, and Grating
Catch basins, drain wells, and grating systems provide essential solutions for stormwater collection and drainage control in municipal, commercial, agricultural, industrial, and residential applications. Designed to capture surface runoff and direct water into underground drainage systems, these products help reduce surface ponding, manage runoff, and protect paved and landscaped areas from water damage.
​
Constructed from durable materials such as concrete and high-density plastic, these drainage components are built to withstand traffic loads, harsh weather, and long-term use. Catch basins are designed to collect debris and sediment before it enters downstream systems, while drain wells provide additional capacity for managing excess water during peak flow conditions.
​
Commonly used in parking lots, roadways, commercial sites, industrial facilities, and landscaped areas, our catch basins, drain wells, and grating systems offer reliable, low-maintenance drainage performance for a wide range of site conditions.
​
Sizes:
- 12", 20", or 24" DIA with risers to increase depth
- 9", 12", and 18" Square with risers to increase depth
- 24" DIA Drain Wells
- Poly, Cast Iron, and Atrium Grates
​
Concrete Sumps, Mud Pits, and Separators
Sumps, mud pits, and separators are essential components for water collection, sediment control, and wastewater management in industrial, commercial, agricultural,and construction applications. Designed to manage water and suspended solids at the source, these systems support safe site operations and efficient downstream drainage.
Sumps are used to collect and temporarily store water for controlled discharge or pumping. Mud pits provide containment for sediment, slurry, and heavy debris, commonly used in construction, drilling, and washdown environments. Separators help capture solids and debris before water enters drainage or treatment systems, reducing maintenance and system loading.
Manufactured from durable, corrosion-resistant materials, these products are built for high-use and demanding conditions, offering reliable, low-maintenance performance for managing stormwater, process water, and site runoff.
​
Sizes:
- 15gal
- 40gal Single or Dual Compartment
- 250gal Dual Compartment
- 700gal Dual Compartment
- 1000gal Dual Compartment
Oil Interceptors
Oil interceptors are designed to separate oil, grease, and suspended solids from water before discharge, helping protect drainage infrastructure and support compliance with environmental regulations. Commonly used in industrial facilities, vehicle service areas, car washes, parking structures, and washdown environments, these systems reduce hydrocarbon contamination entering downstream systems.
​
All of our oil interceptors achieve 96% efficiency or greater and are certified to IAPMO IGC-325, the industry’s oil separator performance standard. They meet EPA hydrocarbon discharge guidance of 100 ppm or less, providing reliable performance for regulated applications.
​
Available sizes can be configured with field-adjustable risers, high-water hold-down kits, oil level monitoring systems, and H-20 rated cast iron covers, allowing flexibility to meet site and installation requirements.
​
Sizes:
- 25gpm
- 50gpm
- 75gpm
- And more..
